Peek Plugin Chat Style Example

Peek Plugin Chat displays active chat sessions and their messages.

• The active chat sessions should indicate if there are unread messages.
• The message lists will display sent messages on the right and received messages on the left.
• Background contextual colours will distinguish a successfully sent message or an emergency “SOS” message received.

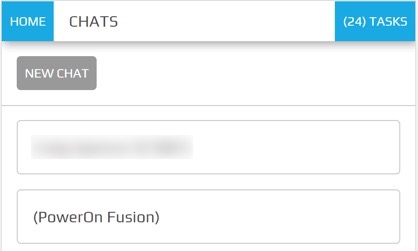

Chats:

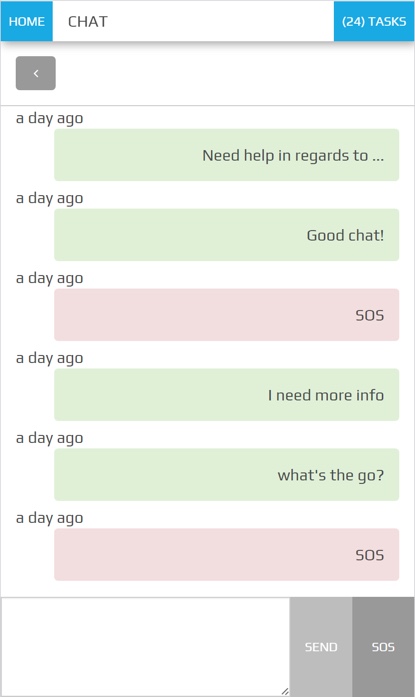

Messages:

Originally this plugin was designed to send messages between the power grid control room and field engineers.

Simple communications with external systems.

Components

The chat-list component displays a list of active chat sessions that route to the msg-list component. The “New Chat” button in the Navigation Bar routes to the new-chat component.

The new-chat component creates new chat sessions. The user builds a list of one or more users for a new chat session.

The msg-list component shows the list of sent and received messages for the selected chat session. The “angle-left” button in the Navigation Bar routes to the chat-list component. The user has the option to compose a new message to send of send an “SOS” message.

Classes

The .plugin-chat-list class contain the classes specific to the chat-list component. The .plugin-chat-messages class contains the classes specific to the msg-list component. The new-chat component uses generic classes, see Other Useful Styles.

.plugin-chat-list {
  /*
      Contains the chat-list component classes
  */
  ...

  .chat-list-messages {
    /*
        Contains the Messages attributes unique to the Chat List
    */
    ...

    .chat-list-icon {
      /*
          Contains the icon attributes unique to the message class
          The icon is used to indicate unread messages
      */
      ...

    }
    .chat-list-title {
      /*
          Contains the topic text attributes unique to the message class
      */
      ...

    }
  }
}

.plugin-chat-messages {
  /*
      Contains the msg-list component classes
  */
  ...

  .chat-messages-list {
    /*
        Attributes for the container of messages, unique to the Chat
        Messages.
        Scrolls through the messages with most recent at the bottom.
    */
    ...

    .chat-messages-sent {
      /*
          Contains the sent message attributes unique to the message-list
          class.
          Container is right aligned with background colour different to the
          received class.
          bg-success class applied for a successfully sent message.
      */
      ...

    }
    .chat-messages-received {
      /*
          Contains the received text attributes unique to the message-list
          class.
          Container is right aligned with background colour different to the
          sent class.
          bg-warning class applied for an emergency priority message.
      */
      ...

    }
    .chat-messages-details {
      /*
          Contains the message details text attributes unique to the
          message-list class.
          The message details should not be the focus of attention (text-muted)
      */
      ...

    }
    .chat-messages-emergency {
      /*
          Contains the emergency priority message text attributes unique to the
          message-list class
      */
      ...

    }
    .chat-messages-normal {
      /*
          Contains the normal priority message text attributes unique to the
          message-list class
      */
      ...

    }
  }
  .chat-messages-compose {
    /*
        Contains the compose message area attributes unique to the
        chat messages.
        Fixed to the bottom of the screen.
    */
    ...

    .chat-messages-new-text {
      /*
          Contains the new message text attributes unique to the
          chat-messages-compose class.
      */
      ...

    }
  }
}
.chat-messages-btn-group {
    ...

  .chat-messages-btn {
    /*
        Contains the button attributes unique to the
        chat-messages-compose class.
    */
    ...

  }
}

SCSS Files

The Inbox style classes are found in the _plugin_chat.scss.

The Inbox HTML layout classes are found in the _plugin_chat.web.scss.

The Inbox NativeScript layout classes are found in the _plugin_chat.ns.scss.

HTML

chat-list component

<!--TRANSITION WITH REASON DIALOG -->
<pl-chat-new-chat
        *ngIf="isNewChatDialogShown()"
        (create)="dialogConfirmed($event)"
        (cancel)="dialogCanceled()"
        [data]="newChatDialogData">

</pl-chat-new-chat>


<div class="peek-nav-section">
    <!--
        The following 'div' groups button to the left of the Nav Bar.
        Can contain one to many buttons
    -->
    <div class="btn-group pull-left"
         *ngIf="!isNewChatDialogShown()"
         role="group">
        <button class="btn"
                role="group"
                (click)="newChatClicked()">
            New Chat
        </button>
    </div>
</div>

<div class="plugin-chat-list">
    <!-- Use the template tag syntax, as this works with nativescript too -->
    <ng-template ngFor let-chat [ngForOf]="chats" let-i="index">
        <div class="chat-list-messages" (click)="chatClicked(chat)">

            <!-- Unread indicator -->
            <fa class="chat-list-icon" name="fw" *ngIf="isChatRead(chat)"></fa>
            <fa class="chat-list-icon" name="comment-o" *ngIf="!isChatRead(chat)"></fa>

            <!-- Other Users -->
            <div class="chat-list-title" *ngFor="let user of otherChatUsers(chat)">
                {{userDisplayName(user)}} ({{user.userId}})
            </div>
        </div>
    </ng-template>
</div>

new-chat component

<div [@dialogAnimation]="dialogAnimationState"
     (@dialogAnimation.done)="animationDone($event)">

    <div class="h2">
        Start a chat wth :
    </div>

    <div class="p"
         *ngIf="!createButtonEnabled()">
        No users selected
    </div>
    <ul>
        <li *ngFor="let u of data.users">
            {{u.displayName}}
        </li>
    </ul>

    <div class="form-group">
        <label class="h4"
               for="userIdField">
            Add User:
        </label>
        <select class="form-control"
                id="userIdField"
                name="userId"
                [(ngModel)]="selectedUserIndex">
            <option [value]="i" *ngFor="let i = index; let item of usersStrList">
                {{item}}
            </option>
        </select>
    </div>


    <!-- BEGIN HANDBACK DIALOG -->
    <div>
        <Button class="btn" (click)="addUserClicked()"
                [disabled]="!newButtonEnabled()">
            Add User
        </Button>

        <Button class="btn" (click)="confirmClicked(false)"
                [disabled]="!createButtonEnabled()">
            Create Chat
        </Button>

        <Button class="btn" (click)="cancelClicked(false)">
            Cancel
        </Button>
    </div>
</div>

msg-list component

<div class="peek-nav-section">
    <div class="btn-group pull-left"
         role="group">
        <button class="btn"
                role="group"
                (click)="navToChatsClicked()">
            <fa name="angle-left"></fa>
        </button>
    </div>
</div>

<div class="plugin-chat-messages"
     #messageListRef>
    <!-- No Messages -->
    <div class="h3"
         *ngIf="!haveMessages()">
        No messages

    </div>
    <div class="chat-messages-list">

        <div *ngFor="let i=index; let msg of messages()">
            <!-- Unread marker -->
            <hr *ngIf="isFirstUnreadMesage(i)"/>

            <!-- From and Date -->
            <div [class.sent]="isMessageFromThisUser(msg)"
                 [class.received]="!isMessageFromThisUser(msg)">
                <div class="chat-messages-details"
                     *ngIf="!isMessageFromThisUser(msg)">
                    From {{userDisplayName(msg)}} ({{msg.fromUserId}}), {{timePast(msg)}}
                    ago

                </div>
                <div class="chat-messages-details"
                     *ngIf="isMessageFromThisUser(msg)">
                    {{timePast(msg)}} ago

                </div>
                <div [class.chat-messages-sent]="isMessageFromThisUser(msg)"
                     [class.chat-messages-received]="!isMessageFromThisUser(msg)"
                     [class.bg-success]="isNormalPriority(msg)"
                     [class.bg-danger]="isEmergencyPriority(msg)">

                    <div class="chat-messages-normal"
                         *ngIf="isNormalPriority(msg)">
                        {{msg.message}}

                    </div>
                    <div class="chat-messages-emergency"
                         *ngIf="isEmergencyPriority(msg)">
                        {{msg.message}}

                    </div>
                </div>
            </div>
        </div>
    </div>

    <div class="chat-messages-compose">
    <textarea class="form-control"
              [(ngModel)]="newMessageText">

    </textarea>
        <button class="btn" type="button"
                [disabled]="!sendEnabled()"
                (click)="sendMsgClicked()">
            Send

        </button>
        <button class="btn" type="button"
                (click)="sendSosClicked()">
            SOS

        </button>
    </div>
</div>
